So I knew that my Hellcat being used when purchased was a dice roll... So far it has been 75% in my favor and I wanted a project car so I can't complain...10.7x in the quarter stock and still with more room to grow with new toys, I'll take it. Since April the audio has not worked properly, speakers kicking in and out, low volumes at time and here is a journal of the fuckery from aftermarket audio places that should be banished to the shadow realms... Exhibit A: massacred harness at the amplifier.

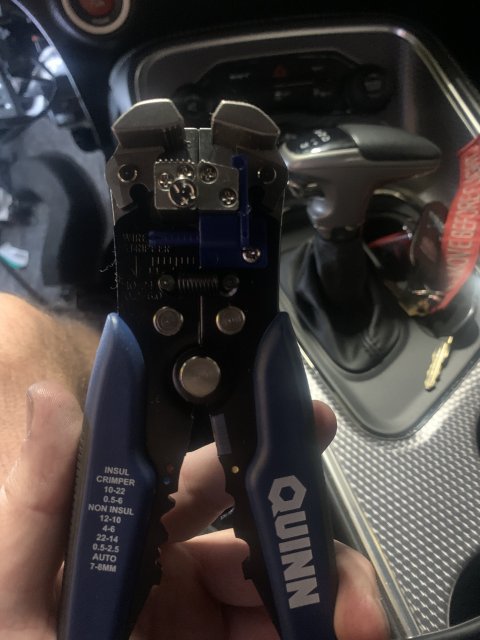

So I got to using my new tool:

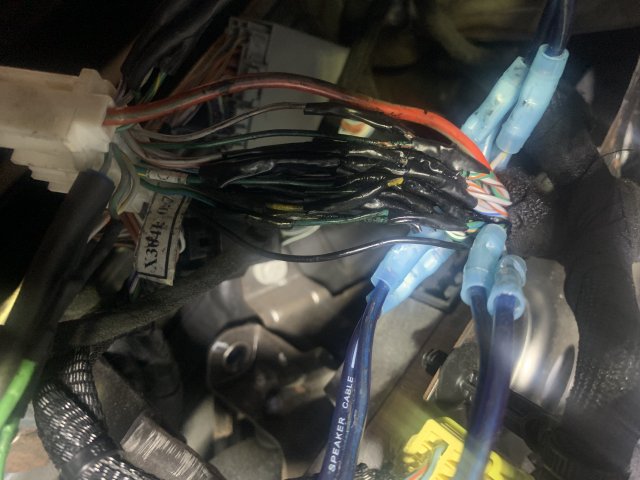

Remediation: cleaned up the harness as good as I could, proper connections, heat shrinking and the harness was tested for continuity. All worked except one speaker...
So at the speaker I'm getting 0, nada, ziltch... Scratching my head I noticed that there was another harness at play at the amp... of course fuckery ensued.
I said fuck it, whole sale cut it out and just rebuilt the harness.
There's two great grey/orange wires... cause fuck you, that's why... I figured out which goes where in the end but it seems like donkey doo doo to do that. Fixed harness... All speakers are working, still low volume and some fuckery from the tweeters. Diving deeper... The speakers in the car are from DD Audio, don't know anything about the brand but know damn well the stock amp can't power them after looking up the specs. One trip later to best buy and I have a whole new set of Kicker KS series for the rear deck and the doors. They sound amazing and were a breeze to install:
So after dealing with the speakers and getting good sound still having to deal with some fucker afoot with the tweeters in the rear panels, of course... the fabricobbled bullshit plastic whatever audio installer billy bob used was shatterd and just flopping around like a you know what in the breeze...
So time to fabricate new mounts, out of lexan, that won't break and are amazing...
Now when on my leisurly strolls to the supermarket I can blast all the music I want, as loud as I want and try my damn hardest to drown out the motor/superchargers/exhaust (never works). I'm glad it's fixed and figured I'd share either you're going to laugh or you're going to cry... Also I'm not getting shocked by rando wires grounding against the body now so that is a plus.

OP
fumanchu182

fumanchu182

1000 Posts Club
Premium Account
Active Duty U.S. Navy
Donating Member
9 Second Best E/T
Member ID
#2366
Messages
1,099
Reactions
2,680
Points
162
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #2

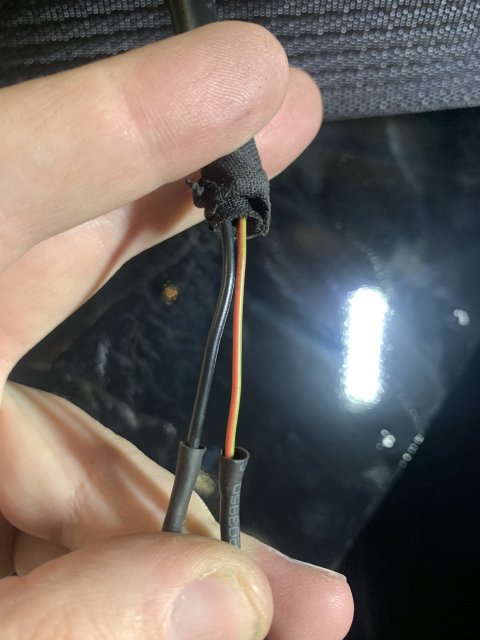

Bonus time! Found these two wires here just dangling, they were initially hooked up to the rear left speaker in the deck (amazing the car didn't catch on fire)... Anyone know what they are:

And shout out to @Diboblo for helping me navigate the wiring harness diagrams.


Diboblo

1000 Posts Club
Vendor
Founding Member
Wiki Contributor
Member ID
#1044
Messages
1,429
Reactions
6,235
Points
162
City
Riverside
State
CA
Country
United States
Vehicle
2015 Dodge Charger Hellcat!
#3
Nice work, brother.

The service manuals, available for download, have very good wiring diagrams, in them. I'll take a look and see if they lead to any revelations. Looked through all the rear deck speaker combos and didn't see any pairs of wires, with those color combos, for premium, or base systems.



Bob


Paladin06

2000 Posts Club
Founding Member
Premium Account
U.S. Army Veteran
Donating Member
Member ID
#1080
Messages
2,635
Reactions
11,645
Points
252
City
Queen Creek
State
AZ
Country
United States
Vehicle
2015 Challenger Hellcat/2019 Challenger Redeye
#4
Sounds like you know your way around wire world. Great job.


1971demon

7000 Posts Club
Founding Member
Member ID
#1122
Messages
7,842
Reactions
16,509
Points
352
City
Orchard Park
State
NY
Country
United States
Vehicle
2018 Demon 2016 Hellcat
#5
Sounds like you know your way around wire world. Great job.
Rarely do i listen to the radio in my HC's...in my DDers...it always on...in the HC's almost never...

OP
fumanchu182

fumanchu182

1000 Posts Club
Premium Account
Active Duty U.S. Navy
Donating Member
9 Second Best E/T
Member ID
#2366
Messages
1,099
Reactions
2,680
Points
162
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #6
Nice work, brother.
The service manuals, available for download, have very good wiring diagrams, in them. I'll take a look and see if they lead to any revelations. Looked through all the rear deck speaker combos and didn't see any pairs of wires, with those color combos, for premium, or base systems.
Bob
Yeah went through the pages again and still scratching my head...

Sounds like you know your way around wire world. Great job.
Wire world is a wacky place full of colors and sometimes angry pixies if you connect the wrong two wires of have your forearm brush against both the positive and negative in a cramped space while doing work...

Rarely do i listen to the radio in my HC's...in my DDers...it always on...in the HC's almost never...
I do enjoy the rippage, sometimes I just wanna rock out tho to tunes on the highway or during the morning commute.


vortecd

Poster Club Hall of Fame
Premium Account
10 Second Best E/T
HFCOTM
Member ID
#1248
Messages
14,871
Reactions
42,036
Points
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
#7
Rarely do i listen to the radio in my HC's...in my DDers...it always on...in the HC's almost never...
my Hellcat is my daily so it is rocking:)


vortecd

Poster Club Hall of Fame
Premium Account
10 Second Best E/T
HFCOTM
Member ID
#1248
Messages
14,871
Reactions
42,036
Points
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
#8
I wouldn't think a 70K car would have some janky audio wiring job. Did it come with the base Alpine system?

OP
fumanchu182

fumanchu182

1000 Posts Club
Premium Account
Active Duty U.S. Navy
Donating Member
9 Second Best E/T
Member ID
#2366
Messages
1,099
Reactions
2,680
Points
162
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #9
I wouldn't think a 70K car would have some janky audio wiring job. Did it come with the base Alpine system?
HK but like I said it was massacred by the previous owner. This cars daily driven days are numbered. When I get to Florida, it will probably be gutted and turned into "racecar"...

Member ID
#2007
Messages
116
Reactions
309
Points
37
City
Burnsville
State
MN
Country
United States
Vehicle
2019 Challenger Redeye
#10
Geezus Christ, it looks like I installed that stereo system with a pair of sidecutters, Channel Locks, and a crimping tool from the Dollar Store ......smg


Magnified

7000 Posts Club
Founding Member
Member ID
#1155
Messages
7,131
Reactions
12,810
Points
352
City
West Texas
State
TX
Country
United States
Vehicle
2017 Charger HC
#11
So I knew that my Hellcat being used when purchased was a dice roll... So far it has been 75% in my favor and I wanted a project car so I can't complain...10.7x in the quarter stock and still with more room to grow with new toys, I'll take it. Since April the audio has not worked properly, speakers kicking in and out, low volumes at time and here is a journal of the fuckery from aftermarket audio places that should be banished to the shadow realms... Exhibit A: massacred harness at the amplifier.
View attachment 33481

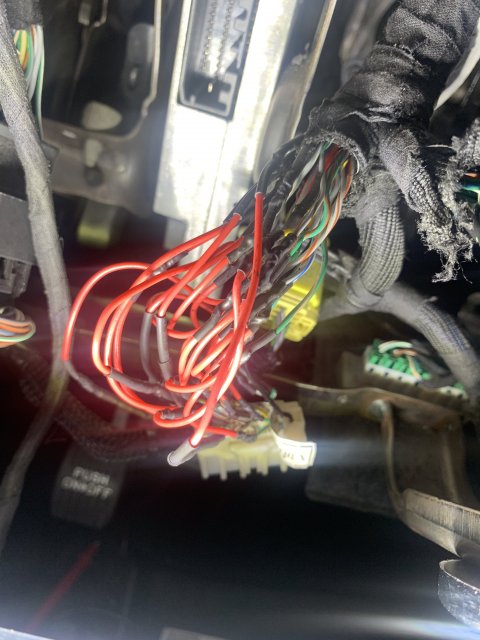

So I got to using my new tool:
View attachment 33482

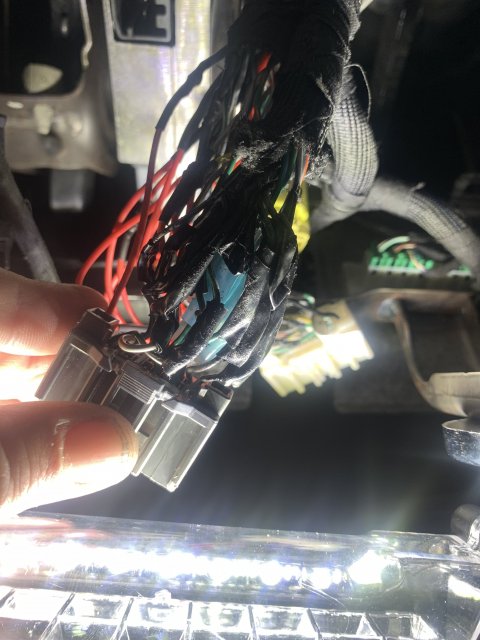

Remediation: cleaned up the harness as good as I could, proper connections, heat shrinking and the harness was tested for continuity. All worked except one speaker...
View attachment 33483
So at the speaker I'm getting 0, nada, ziltch... Scratching my head I noticed that there was another harness at play at the amp... of course fuckery ensued.
View attachment 33484

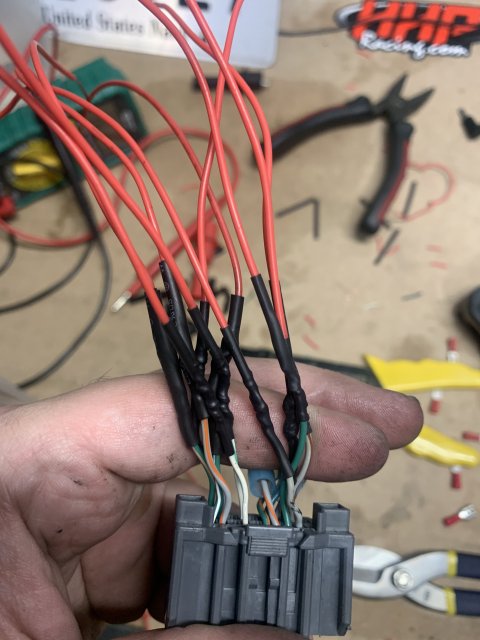

I said fuck it, whole sale cut it out and just rebuilt the harness.
View attachment 33490

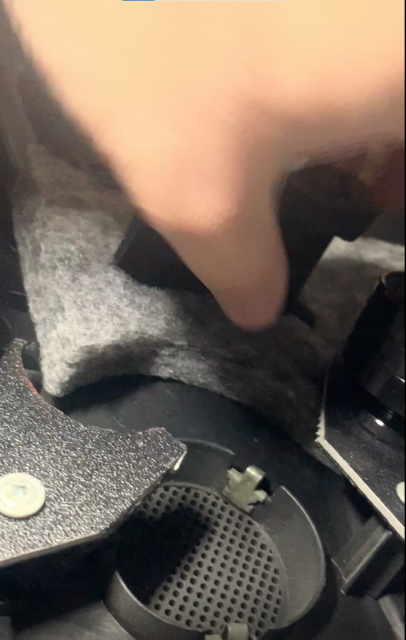

There's two great grey/orange wires... cause fuck you, that's why... I figured out which goes where in the end but it seems like donkey doo doo to do that. Fixed harness... All speakers are working, still low volume and some fuckery from the tweeters. Diving deeper... The speakers in the car are from DD Audio, don't know anything about the brand but know damn well the stock amp can't power them after looking up the specs. One trip later to best buy and I have a whole new set of Kicker KS series for the rear deck and the doors. They sound amazing and were a breeze to install:
View attachment 33485

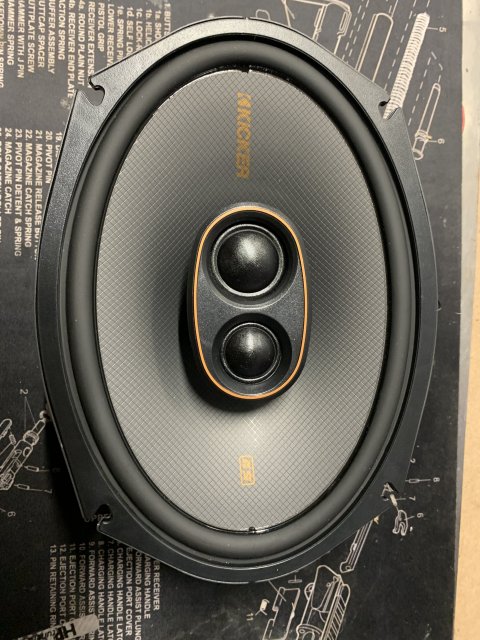

So after dealing with the speakers and getting good sound still having to deal with some fucker afoot with the tweeters in the rear panels, of course... the fabricobbled bullshit plastic whatever audio installer billy bob used was shatterd and just flopping around like a you know what in the breeze...
View attachment 33486

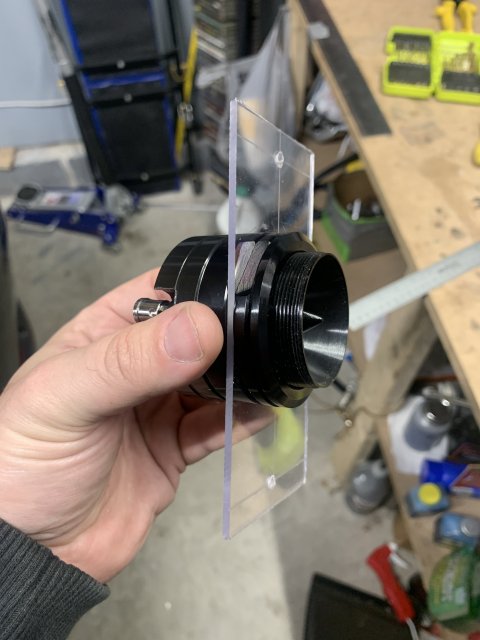

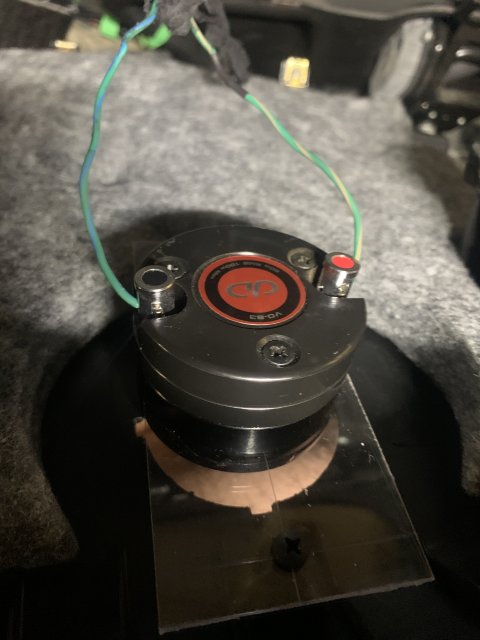

So time to fabricate new mounts, out of lexan, that won't break and are amazing...
View attachment 33488
View attachment 33489
Now when on my leisurly strolls to the supermarket I can blast all the music I want, as loud as I want and try my damn hardest to drown out the motor/superchargers/exhaust (never works). I'm glad it's fixed and figured I'd share either you're going to laugh or you're going to cry... Also I'm not getting shocked by rando wires grounding against the body now so that is a plus.
Aw come on man, all you need is some balled up electrical tape on those connections.... lol


vortecd

Poster Club Hall of Fame
Premium Account
10 Second Best E/T
HFCOTM
Member ID
#1248
Messages
14,871
Reactions
42,036
Points
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
#12
HK but like I said it was massacred by the previous owner. This cars daily driven days are numbered. When I get to Florida, it will probably be gutted and turned into "racecar"...
I'm pretty happy with the HK and would not modify it other then a speaker change at most. Our Challenger has the Alpine and it does need some help:)

OP
fumanchu182

fumanchu182

1000 Posts Club
Premium Account
Active Duty U.S. Navy
Donating Member
9 Second Best E/T
Member ID
#2366
Messages
1,099
Reactions
2,680
Points
162
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #13
Geezus Christ, it looks like I installed that stereo system with a pair of sidecutters, Channel Locks, and a crimping tool from the Dollar Store ......smg
Aw come on man, all you need is some balled up electrical tape on those connections.... lol

I'm pretty happy with the HK and would not modify it other then a speaker change at most. Our Challenger has the Alpine and it does need some help:)
A lot of my friends say it is good. I was in a WB Redeye and it does sound nice. He heard mine after the fix and says it has more bass.

Member ID
#2007
Messages
116
Reactions
309
Points
37
City
Burnsville
State
MN
Country
United States
Vehicle
2019 Challenger Redeye
#14
^^^LOL^^^


Grape Ape

500 Posts Club
Member ID
#2552
Messages
558
Reactions
1,370
Points
132
City
Braselton
State
GA
Country
United States
Vehicle
2016 Challenger Hellcat
#15
Dang! I was laughing so hard I almost cried. Talk about a dumpster fire. WTH were they thinking? That wiring job looked about as good as a 350 pound woman in yoga pants! :eek:

OP
fumanchu182

fumanchu182

1000 Posts Club
Premium Account
Active Duty U.S. Navy
Donating Member
9 Second Best E/T
Member ID
#2366
Messages
1,099
Reactions
2,680
Points
162
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #16
Bonus time! Found these two wires here just dangling, they were initially hooked up to the rear left speaker in the deck (amazing the car didn't catch on fire)... Anyone know what they are:
View attachment 33492

And shout out to @Diboblo for helping me navigate the wiring harness diagrams.

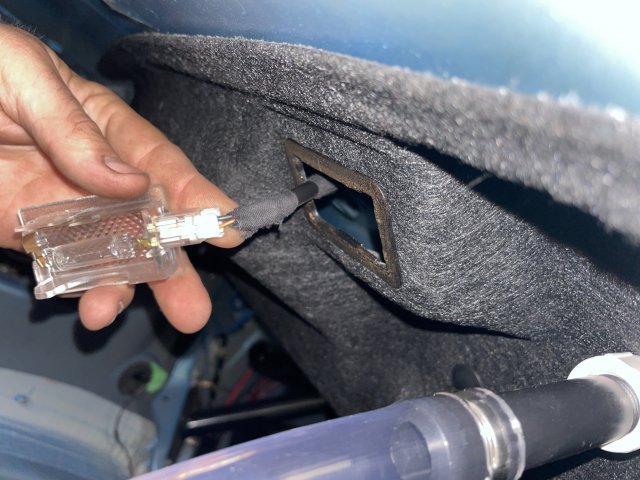

Today is the day. Today is the fooking day I finally found out what these wires are! Only almost a year later…
