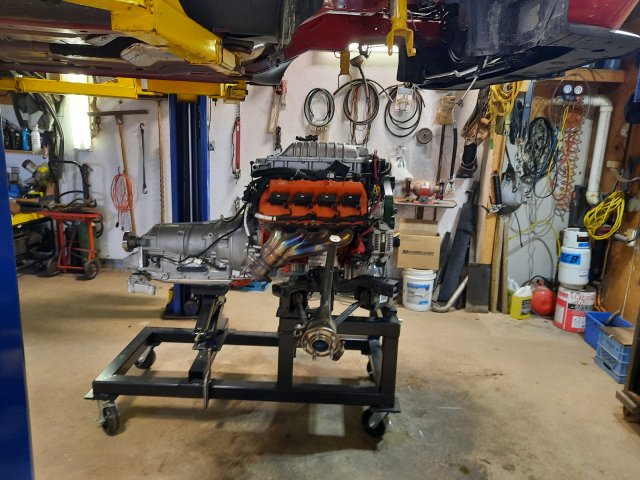

If you have access to a 2 post hoist.

This Cradle works like a charm for bringing the engine down from below.

You also do not need to remove your hood.

You would first let the k-member, engine & trans assembly hang from the car by loosening the 4 k-member and 4 transmission crossmember bolts about 3/8" out evenly, then let the car down just to make k-member contact the cradle, then raise the transmission scissor jack snug under the trans.

(Of course prior to this you have disconnected everything else to allow this assembly to come down.)

You then completely remove the 4 k-member & 4 trans cross member bolts and slowly raise the car making sure you have not forgotten to disconnect anything or that it might just get caught on something.

You can leave the A/C system sealed by just having another set of hands on a six foot by ladder holding the Compressor away from scratching the block and valve covers as the car is being raised.

What I did by myself was bungee cord it off to the side and placed a heavy cloth over that section of the engine and raised the car inches at a time then get up on the ladder and make sure the A/C compressor was sliding by nicely plus looking for any hang ups as I am bringing the car up until it was clear like what oilburners picture shows a few posts ago, then just roll it away.

@oilburner, @Hpindy and myself have used it now several times and would never do a removal from any of these LX/LC cars any other way after the first time we used it.



Last edited:

oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
686
Reactions
1,740
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
#2
here you go @BULL or anyone else interested

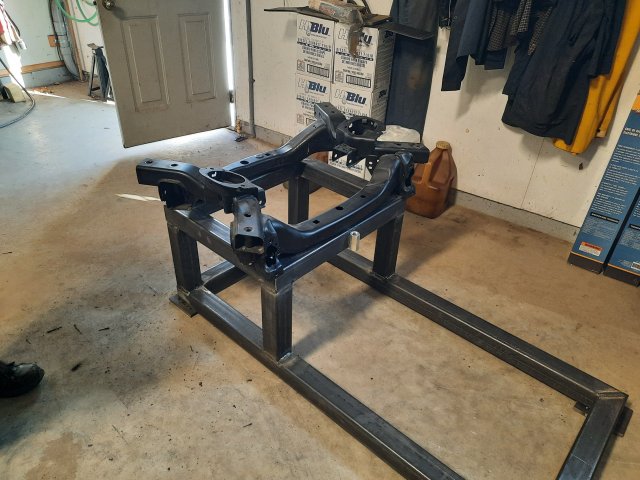

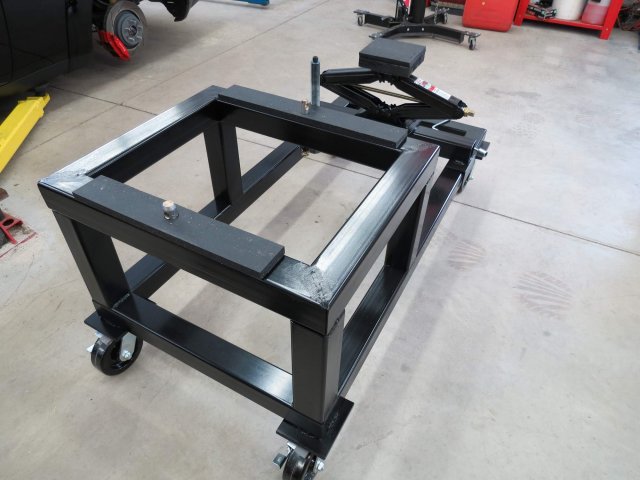

main frame is 5ft long by 28 inch wide. box on top of frame is 15 inch tall, same width as main frame an 23 an a half inch long.
all square tubbing is pre cut including angles by steel supplier. all tubbing is 3 inch by 3/16th wall.

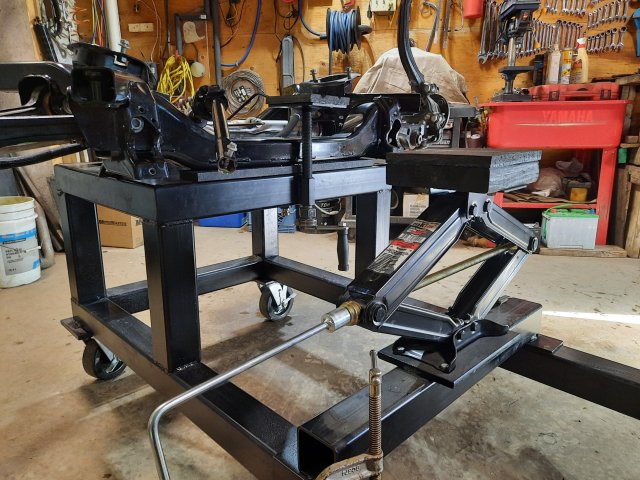

heavy duty 6 by 2 inch casters that pivot 360 degrees for those fine movements when aligning locating dowels that fit in factory cradle holes.
separate support under oil pan to enable trans. removal. trans. support is adjustable. rubber pad so not to scratch cradle frt an rear.
this thing can roll around the floor easy like a large costco shopping cart.:giggle:
very sturdy.
this was @DemonSRTs idea an design. I keep telling him I was just the welder;)

if anyone that does a lot of engine removals on this platform, would want this in their shop.



Attachments

Magnified

Poster Club Hall of Fame
Founding Member
Member ID
#1155
Messages
11,710
Reactions
19,827
Likes
352
City
West Texas
State
TX
Country
United States
Vehicle
2017 Charger HC (once upon a time)
#3
That's nice. work smarter, not harder. I really dig that.



OP
DemonSRT

DemonSRT

500 Posts Club
Donating Member
8 Second Best E/T
Member ID
#1457
Messages
540
Reactions
1,718
Likes
132
City
Kawartha Lakes
State
Non-US
Country
Canada
Vehicle
Built in Canada 2018 Demon #3135
Thread Starter #4

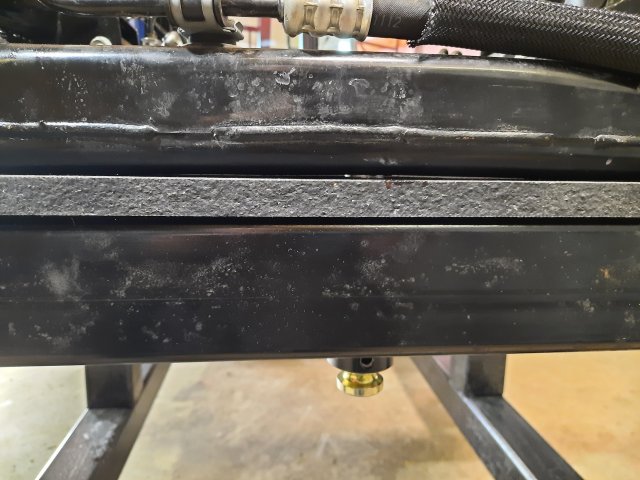

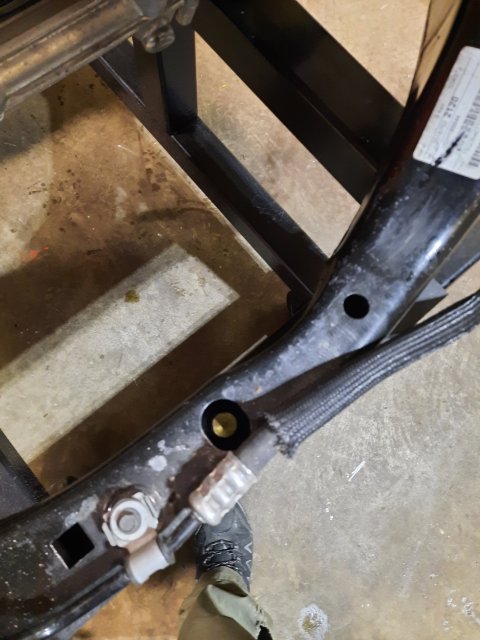

Here is a picture showing the pins that help keep the K-member in place. IMG_2150a.JPG



jgilj

1000 Posts Club
9 Second Best E/T
Member ID
#1483
Messages
1,323
Reactions
10,982
Likes
162
City
Brooksville
State
FL
Country
United States
Vehicle
21 Challenger Super Stock
#5
Damn it that’s art work! Thanks for the info! Now I’ll need to find a welder😳



OP
DemonSRT

DemonSRT

500 Posts Club
Donating Member
8 Second Best E/T
Member ID
#1457
Messages
540
Reactions
1,718
Likes
132
City
Kawartha Lakes
State
Non-US
Country
Canada
Vehicle
Built in Canada 2018 Demon #3135
Thread Starter #6

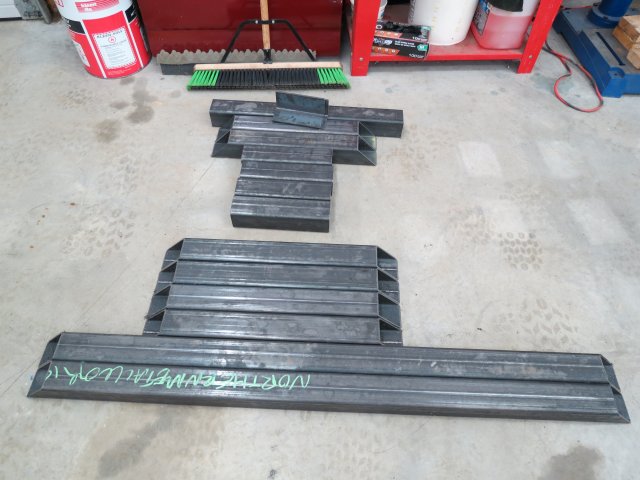

Here's the raw metal used in this unit. IMG_2122.JPG



oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
686
Reactions
1,740
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
#7

jgilj

1000 Posts Club
9 Second Best E/T
Member ID
#1483
Messages
1,323
Reactions
10,982
Likes
162
City
Brooksville
State
FL
Country
United States
Vehicle
21 Challenger Super Stock
#8
I’d be bringing that bad boy in the living room as a center piece 👍



BULL

Oh NO! Not that guy!
Staff Team
Founding Member
U.S. Marine Veteran
Donating Member
HFCOTM
Wiki Contributor
Member ID
#1079
Messages
14,590
Reactions
44,754
Likes
402
City
Weld County
State
CO
Country
United States
Vehicle
MY16 M6 Challenger Hellcat
HFCOTM
View Images
#9
Are the dimension given "Center to Center" or OD?



oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
686
Reactions
1,740
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
#10

oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
686
Reactions
1,740
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
#11

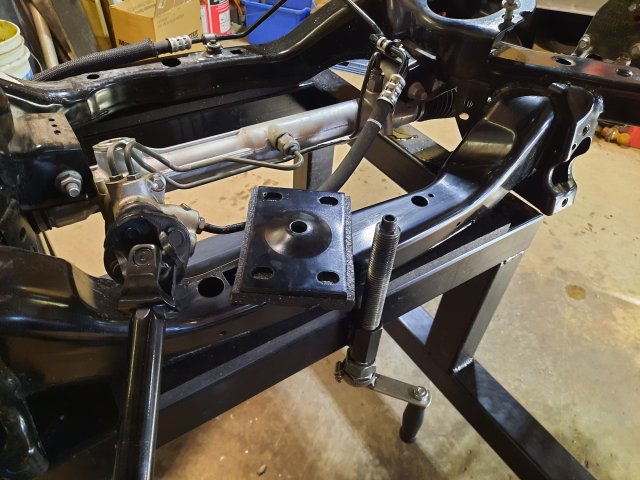

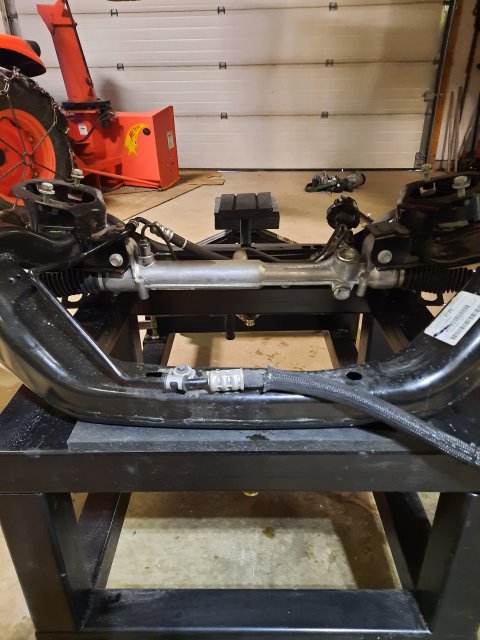

you will have to measure the distance between the 2 holes in the K frame for your 2 centering dowels an were the big nut is welded for your oil pan support.

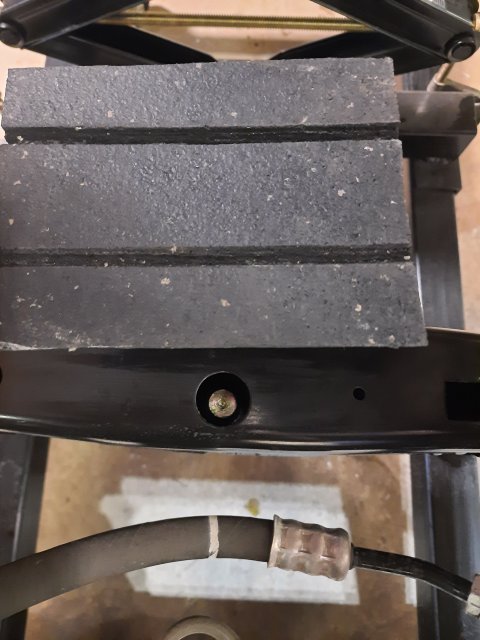

notice in the pic the oil pan support is not in align with dowels ,its offset.
if you run a string frt to rear through the frames holes you will see it.
its important you transfer the measurements from your K frame / oil pan to the dolly.
the dowels on this unit fit precise an maybe a smaller dowel would be a little more forgiving.



Attachments

BULL

Oh NO! Not that guy!
Staff Team
Founding Member
U.S. Marine Veteran
Donating Member
HFCOTM
Wiki Contributor
Member ID
#1079
Messages
14,590
Reactions
44,754
Likes
402
City
Weld County
State
CO
Country
United States
Vehicle
MY16 M6 Challenger Hellcat
HFCOTM
View Images
#12
you will have to measure the distance between the 2 holes in the K frame for your 2 centering dowels an were the big nut is welded for your oil pan support.
notice in the pic the oil pan support is not in align with dowels ,its offset.
if you run a string frt to rear through the frames holes you will see it.
its important you transfer the measurements from your K frame / oil pan to the dolly.
the dowels on this unit fit precise an maybe a smaller dowel would be a little more forgiving.

Whatever that distance is, you'd expect it to be consistent, correct?



oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
686
Reactions
1,740
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
#13
Whatever that distance is, you'd expect it to be consistent, correct?
for sure! don`t think there`s any difference in the K frame between MYs
so far its been perfect for 09 srt, my16 cat, 18 demon an 18 cat.



OP
DemonSRT

DemonSRT

500 Posts Club
Donating Member
8 Second Best E/T
Member ID
#1457
Messages
540
Reactions
1,718
Likes
132
City
Kawartha Lakes
State
Non-US
Country
Canada
Vehicle
Built in Canada 2018 Demon #3135
Thread Starter #14
The locating pin holes in the K-member of the LX/LC chassis, (300's, Magnum's, Charger's & Challenger's), from day one to present are in the same location and size. I just need to confirm if the AWD vehicles are also the same as I have not worked on one of them yet to find out.



OP
DemonSRT

DemonSRT

500 Posts Club
Donating Member
8 Second Best E/T
Member ID
#1457
Messages
540
Reactions
1,718
Likes
132
City
Kawartha Lakes
State
Non-US
Country
Canada
Vehicle
Built in Canada 2018 Demon #3135
Thread Starter #15
If I built a few of these and the freight cost is low enough would anyone be interested in one of these?



jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
#16
If I built a few of these and the freight cost is low enough would anyone be interested in one of these?
How much do you think they’d cost without freight? @Hpindy and @moparjim are trying to talk me and @vortecd into a Canada trip



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#17
How much do you think they’d cost without freight? @Hpindy and @moparjim are trying to talk me and @vortecd into a Canada trip
Yes ...... Yes we are !

Sent from my BBF100-2 using Tapatalk



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#18
This dolly is the cats meow! Im thinking on using it even when I have to change spark plugs ......

Sent from my BBF100-2 using Tapatalk



jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
#19
This dolly is the cats meow! Im thinking on using it even when I have to change spark plugs ......

Sent from my BBF100-2 using Tapatalk
I still need the barn. I’ve been waiting 2 years for prices to settle but at this point it just needs to happen. Lift is one of the first things.



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#20
I still need the barn. I’ve been waiting 2 years for prices to settle but at this point it just needs to happen. Lift is one of the first things.
I have a good work shop for but the celing is not high enough for a hoist ........ The shingles need to be done now and I'm considering raising the roof for a hoist if I got to do work up there anyway .
