Scarface Challenger build

Tuckerracing

Active Member
Donating Member
9 Second Best E/T
Member ID
#2718
Messages
320
Reactions
856
Likes
117
City
Whitehouse
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
#1
I have a 2016 Hellcat Challenger A8 that I will be building to be more of drag car than a street car. So far I have installed the ATI 10% overdrive pulley, pinned the crank, green belt, ID 1050x injectors, jba catless mid-pipes, legmaker intake, 180 degree t-stat and engine and trans tune by Peitz Performance. I have the following parts sitting on the shelf trying to decide which route to go: Litens 2.85 upper and belt, a spare SC snout with Metco hub and the following pulkey rings 2.85, 2.75, 2.65 and 2.50, FI intake spacers and blanket, HHP drag springs, BMR cradle lock-out bushings, bronze race stars 18x5 with MT 26x6x18 and 17x9.5 with hoosier slicks which I will be changing out to 305/45/17 MT ET Street R’s. Next on the purchase list will be AAD drag pack rear arms, diff brace, mark williams drive shaft and undecided on which axles. Motor internals will stay stock until it is time to rebuild. I think that covers everything so far, will try to get some pictures as progress goes forward.



Last edited:

Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,068
Reactions
15,532
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#2
Sounds like a solid setup. What fuel will you tune for?



OP
Tuckerracing

Tuckerracing

Active Member
Donating Member
9 Second Best E/T
Member ID
#2718
Messages
320
Reactions
856
Likes
117
City
Whitehouse
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
Thread Starter #3
Looking at MS109 since there is a VP dealer about 5 miles from my shop. After talking with Micah at Challengerfest I am going to have OST do all my tuning remotely going forward so I will see what they recommend.



MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
#4
Solid build plan. What made you go with the Mark Williams driveshaft. Some serious coin! The new Wiles 1pc driveshaft looks very nice for 1/3 the cost.



OP
Tuckerracing

Tuckerracing

Active Member
Donating Member
9 Second Best E/T
Member ID
#2718
Messages
320
Reactions
856
Likes
117
City
Whitehouse
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
Thread Starter #5
When I was racing modified’s I ran Mark Williams shafts and never had a failure. I have a couple friends that have been running the WOO late model series and they have been running his shafts for a few years and they have had no failures. Personally I feel like the hellcat shaft is rather long for a one piece shaft. Seems to be quite a few complaints about top end vibration also and any driveline vibration is hard on equipment if it is a continual issue. Eventually I plan on building the motor and I want to make sure I have the best parts I can to eliminate any failures in the driveline.



Grape Ape

500 Posts Club
Member ID
#2552
Messages
580
Reactions
1,464
Likes
132
City
Braselton
State
GA
Country
United States
Vehicle
2016 Challenger Hellcat
#6
That's a nice parts list! Both of those pulley set-ups have their positives and negatives. The Litens won't have the belt slip and squeal when you let off of it after a pass, but you can't change it out like the Metco to get the higher boost levels. I went with the Litens for the longevity factor for the supercharger.



MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
#7
Very well said. The one piece shafts really are hit and miss. A lot of vibration issues documented over the years. Running a dampened DSS 4" Carbon 1 piece on my car. Have not seen vibration up to 170mph. There was a bit of whine prior to changing the diff fluid - No noise since flushed with Motul 80w90.



Jack_Toepfer

3000 Posts Club
Founding Member
Premium Account
Donating Member
Member ID
#966
Messages
3,294
Reactions
6,589
Likes
252
City
Buffalo
State
NY
Country
United States
Vehicle
2016 Dodge Charger Triple Black
#8
Run the smallest pulley your tuner will allow and let it eat. No reason for a race car to run a Litens.



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,068
Reactions
15,532
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#9
Unless you want the supercharger to live LOL



OP
Tuckerracing

Tuckerracing

Active Member
Donating Member
9 Second Best E/T
Member ID
#2718
Messages
320
Reactions
856
Likes
117
City
Whitehouse
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
Thread Starter #10
Run the smallest pulley your tuner will allow and let it eat. No reason for a race car to run a Litens.
I have been on the fence on running the stock SC or going ahead and upgrading it now. If I do stay with stock SC it will be run stock with smaller pulley until it grenades then upgrade.



MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
#11

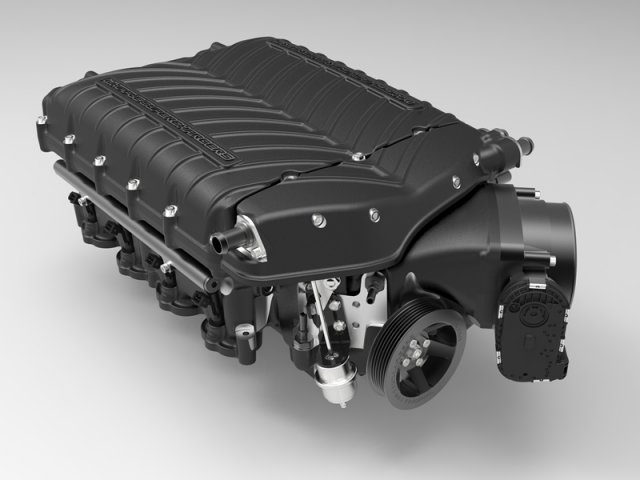

Gen V Whipple all day
OEM S/C internals with hot tune/small pulley



Grape Ape

500 Posts Club
Member ID
#2552
Messages
580
Reactions
1,464
Likes
132
City
Braselton
State
GA
Country
United States
Vehicle
2016 Challenger Hellcat
#12
Very well said. The one piece shafts really are hit and miss. A lot of vibration issues documented over the years. Running a dampened DSS 4" Carbon 1 piece on my car. Have not seen vibration up to 170mph. There was a bit of whine prior to changing the diff fluid - No noise since flushed with Motul 80w90.
Interesting about the whine going away with the diff fluid change. I have noticed a whine with mine after changing the ds and installing the diff brace. I was pondering if part of it may be due to tying the diff to the cradle causing a weird harmonic. I may try the fluid change for kicks.



MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
#13
Interesting about the whine going away with the diff fluid change. I have noticed a whine with mine after changing the ds and installing the diff brace. I was pondering if part of it may be due to tying the diff to the cradle causing a weird harmonic. I may try the fluid change for kicks.
Highly recommend a flush. This is what i used along with a full bottle of MOPAR friction modifier.
https://www.motul.com/ca/en-US/products/gearbox-80w90



Grape Ape

500 Posts Club
Member ID
#2552
Messages
580
Reactions
1,464
Likes
132
City
Braselton
State
GA
Country
United States
Vehicle
2016 Challenger Hellcat
#14
OP
Tuckerracing

Tuckerracing

Active Member
Donating Member
9 Second Best E/T
Member ID
#2718
Messages
320
Reactions
856
Likes
117
City
Whitehouse
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
Thread Starter #15
Had some new parts come in over the last few weeks. Got the AAD drag pack kit and the Darrell Cox Racing light weight battery kit. Trying to decide which axles to order now. Getting closer to having all the parts here so I can lower the cradle and change all the parts at once.



OP
Tuckerracing

Tuckerracing

Active Member
Donating Member
9 Second Best E/T
Member ID
#2718
Messages
320
Reactions
856
Likes
117
City
Whitehouse
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
Thread Starter #16

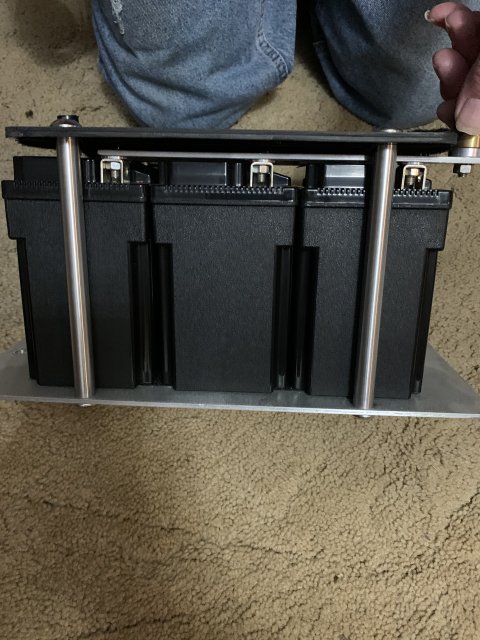

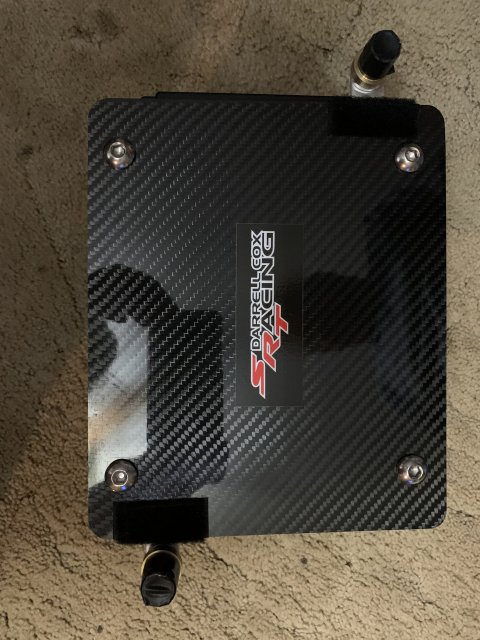

Battery Porn 7246D5BB-A164-4DB4-B443-F8B87FFC4F0B.jpeg 12D3FA38-E986-46F6-9B5F-CCC10431D6BD.jpeg E99C1DD8-AC1A-44CF-AA7B-1D9109BD663B.jpeg



vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,700
Reactions
156,594
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
#17
Had some new parts come in over the last few weeks. Got the AAD drag pack kit and the Darrell Cox Racing light weight battery kit. Trying to decide which axles to order now. Getting closer to having all the parts here so I can lower the cradle and change all the parts at once.
I will be going Gforce axles



OP
Tuckerracing

Tuckerracing

Active Member
Donating Member
9 Second Best E/T
Member ID
#2718
Messages
320
Reactions
856
Likes
117
City
Whitehouse
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
Thread Starter #18
I will be going Gforce axles
Is there that much difference between the G-force axles and the DSS ones?



vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,700
Reactions
156,594
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
#19
The G force seems to have a better warranty and better parts in them



Marc W

3000 Posts Club
Founding Member
U.S. Navy Veteran
Firefighter
8 Second Best E/T
HFCOTM
Member ID
#993
Messages
3,247
Reactions
10,263
Likes
302
City
St. George
State
UT
Country
United States
Vehicle
2016 Dodge Challenger Hellcat
HFCOTM
View Images
#20
Honestly... it’s hard to say on the axle question. DSS claims to have updated theirs but whether that is true or not.... I don’t know. I haven’t heard any recent complaints about the G-Force axles but they had their problems in the past also. I have never had any issues with DSS except poor customer communication when called to answer questions. I currently have one of their 9” conversions and it has been flawless. Other very fast cars with hundreds of runs on that setup without any issues either. I will be selling that in December along with the matching driveshaft (no vibration up to 184 mph). If you are building a drag car, you are going to need to consider the combination of gearing and tire that is going to work for your power level. If you plan on keeping the hp90, the second gear launch is looking like the way to go and the 9” has a good selection of ratios that will work best with that. I will also be selling my entire cradle with everything at a significant discount over buying everything separately. Complete AAD, Carlyle 15” brake conversion with spindles, all bushings and 1320 drag springs.



Last edited:
