#41
@Speedy!
I log all of them for reference. It shows what's going on from the time the air enters the intake system to going into the cylinders .

Sent from my BBF100-2 using Tapatalk



Kotta376

Founding Member
Member ID
#1049
Messages
19
Reactions
23
Likes
2
City
Fate
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
#42
While I agree with most of what you said Speedy, the initial IATs at the start of the run are important. I use cruising highway speed since it is a constant and the opposing variables are less likely to affect the outcome of the air temps. I have data logs to support in two different runs on the stock air box that the start of one run it was 108F and ran “x” time. The next run started at 123F and ran .08 slower and exactly 1mph in the 1/8 mile.
Now if we can have supporting data showing that the JLT or even an LMI will decrease the rise of IATs on the run versus stock air box that is something worth mentioning. I don’t believe the air charge will change hardly at all switching to an aftermarket intake versus stock even with a mild pullied car. I could be wrong since I haven’t logged any with an aftermarket intake. If the stock air box is restrictive in any way with a pullied car then why not just pull the filter at the track to show if there is any gains and it will show in the logs if the air charge has changed?
Just an idea, I really like the form and figment of the JLT intake a lot but I’m trying to decide if it will have an impact on actual airflow and IAT rise during a run.



Kotta376

Founding Member
Member ID
#1049
Messages
19
Reactions
23
Likes
2
City
Fate
State
TX
Country
United States
Vehicle
2016 Challenger Hellcat
#43
I have a theroy . With the bigger intake tube it holds more volume and with highway or low rpm driving the air in the tube is not moving fast enough so it heats up . But once you open the throttle blade more then say 25% the air starts moving and the iat's will drop fast .

Sent from my BBF100-2 using Tapatalk
This could be true, with more cross sectional area the air will move slower but also shouldn’t heat up as quickly either with more area to actually “heat”?



OP
Speedy!

Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,069
Reactions
15,536
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
Thread Starter #44
I don't have track data from the JLT yet, but I do have 1/4 mile logs with the LMI at my finger tips here. On March 7th 2020 at Beech Bend Raceway I made three 9.83 passes. The car has the 2.72 pulley as I mentioned and shift points were 6500 RPM. I believe, at least on my 2016 with the temp sensor in the blower base, that the metal around the sensor has a much larger impact on temperature than the air coming in the intake. I believe the primary benefit of an intake system is the volume of air flow, not the temperatures for the most part.

Supercharger coolant temp in the logs was 73-77° F

Run 1
Ambient air temp in the log 54° F
Aircharge temp after burnout at staging lights 108° F
Aircharge temp at the end of the run, 5800 RPM in 5th gear (A8) 133° F
9.83@140.02


Run 2
Ambient air temp in the log 52° F
Aircharge temp after burnout at staging lights 104° F
Aircharge temp at the end of the run 5800 RPM in 5th 134° F
9.83@137.86


Run 3
Ambient air temp in the log 55° F
Aircharge temp after burnout at staging lights 100° F
Aircharge temp at the end of the run 5800 RPM in 5th 131° F
9.83@138.94

All passes were made in the same right hand lane. 60' were all 1.48-1.52.

I've only done street testing thus far with the JLT. With ambient temp in the log of 86° F and a starting aircharge temp of 100° F and a pull starting in 3rd gear at 3,000 RPM and going through to 5th gear at 5500 RPM the ending aircharge temp was 131° F. Supercharger coolant temp in the log was 91° F.

EDIT: I found logs from November 9, 2019 Beech Bend with the LMI. Air temp was about 60° in the log and with similar starting airchage temps max aircharge temp at the end of the 1/4 at 5800 RPM in 5th was 127° F. So that's why I'm saying there are too many variables to really compare temps down to single digit degrees. Who knows why on a warmer ambient the ending aircharge was cooler.

EDIT2: I did find a log with the stock air box. Beech Bend Raceway 3-10-2019.
Ambient air temp in the log 55° F
Aircharge temp after burnout at staging lights 108° F
Aircharge temp at the end of the run 5700 RPM in 5th 133° F
10.33@133.75 1.63 60' (93 octane run)



Last edited:

Octanewide

500 Posts Club
Founding Member
Donating Member
Member ID
#988
Messages
954
Reactions
1,779
Likes
132
City
House of power
State
IL
Country
United States
#45
The 2018 and up have a IAT sensor instead of a MAF sensor. I log MAT, IAT , ambient temperature, and air charge temperature in my logs for a comparison .

Sent from my BBF100-2 using Tapatalk
Hpindy is that IAT sensor in the intake tube on 18 and up shown anywhere on the performance pages?
I think what I'm currently seeing on inlet air temp on the performance pages is post or after blower discharge temps.



OP
Speedy!

Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,069
Reactions
15,536
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
Thread Starter #46
I believe it would have to be @Octanewide else you wouldn't know what the air temp going in to the cylinders is. If it's higher than ambient at WOT it's definitely post blower.



Octanewide

500 Posts Club
Founding Member
Donating Member
Member ID
#988
Messages
954
Reactions
1,779
Likes
132
City
House of power
State
IL
Country
United States
#47
I believe it would have to be @Octanewide else you wouldn't know what the air temp going in to the cylinders is. If it's higher than ambient at WOT it's definitely post blower.
Speedy I think on 18's+ it's a post blower temp we are seeing on the performance pages as IAT temp. I'm not sure where that inlet tube sensor that is pre throttlebody is being read at.



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#48
Hpindy is that IAT sensor in the intake tube on 18 and up shown anywhere on the performance pages?
I think what I'm currently seeing on inlet air temp on the performance pages is post or after blower discharge temps.
I'm not sure . On my performance pages I have a guage called " intake air temperature " and to be honest I'm not sure where it gets its data from . But I can tell you this if the ambient temp is 60F and my low speed IAT reading is 90F and I flash the throttle it will drop to about 80F instantly and either drop more if the throttle is open still or go back up if the throttle is closed . I have not done any long WOT pulls yet so I don't have any data on WOT yet .

Sent from my BBF100-2 using Tapatalk



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#49
In one of my older logs from the track my IAT went down and was equal to ambient temp by the 1/8 I think but the MAT and aircharge temp kept going up till I let off the throttle then they came down and the IAT started going up .

Sent from my BBF100-2 using Tapatalk



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#50
This could be true, with more cross sectional area the air will move slower but also shouldn’t heat up as quickly either with more area to actually “heat”?
Like I said it was a theroy. My theroy is its sitting in the "tube" and not being consumed fast enough and it's picking up radiant heat from the engine bay.

Sent from my BBF100-2 using Tapatalk



Octanewide

500 Posts Club
Founding Member
Donating Member
Member ID
#988
Messages
954
Reactions
1,779
Likes
132
City
House of power
State
IL
Country
United States
#51
I'm not sure . On my performance pages I have a guage called " intake air temperature " and to be honest I'm not sure where it gets its data from . But I can tell you this if the ambient temp is 60F and my low speed IAT reading is 90F and I flash the throttle it will drop to about 80F instantly and either drop more if the throttle is open still or go back up if the throttle is closed . I have not done any long WOT pulls yet so I don't have any data on WOT yet .

Sent from my BBF100-2 using Tapatalk

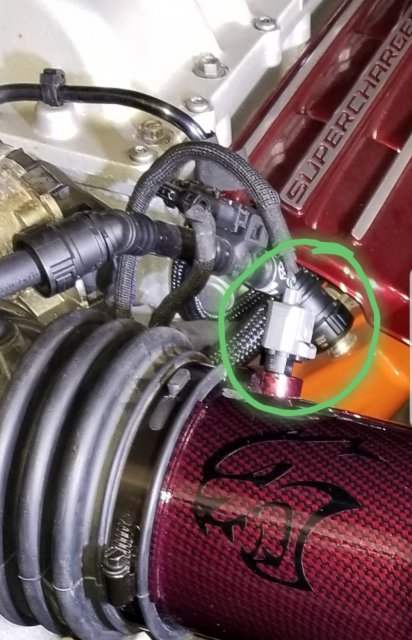

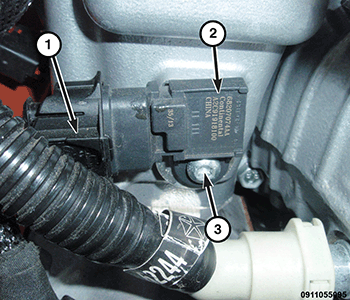

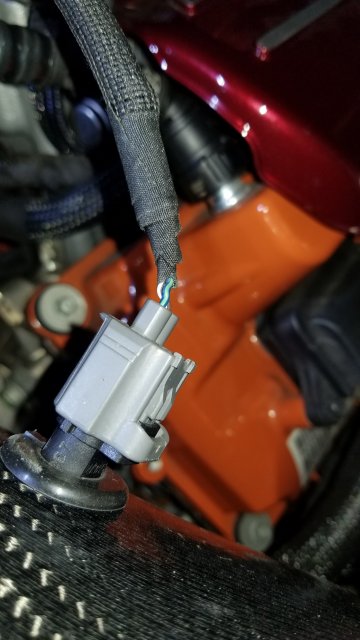

Exactly. I too want to know where this sensor is being read on the air inlet tube.. 20200512_161223.jpg
